904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing

Name: 904L N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing
Brand: DELTA
Price: 4000 USD

Quality 904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing for sale

Brand Name : DELTA

Model Number : 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 4000-5000 USD/Ton

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Stainless Steel Pipe

Grade : 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc

Standard : ASTM GB EN

Length : 6m or custom cutting any length as request

Diameter : DN10 - DN400

Wall thickness : SCH10 - XXS or unstandard size

Type : seamless pipe

Service : cutting, polishing

application : Heat exchanger

Packing : wooden box or PP bag

Contact Now

904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing

Specification of our stainless steel pipe

Products Name	Stainless Steel pIpe
Diameter	DN6 - DN500
Wall Thickness	SCH10S - XXS or unstandard size as request
Length	6m or cutting any length as request
Standard	ASTM JIS EN DIN
Technique	Hot Rolled / cold drawn
Type	Seamless Pipe / Welded Pipe
Surface	Bright Polished, Pickling
Main Grade	201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc
MOQ	500 kgs
Loading Port	Shanghai Port
Packing	wooden box or ppbag

About 904L Stainless Steel Pipe

Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.

Grade 904L contains high amounts of expensive ingredients, such as molybdenum and nickel. Today, most of the applications that employ grade 904L are replaced by low-cost duplex stainless steel 2205.

PRODUCT DESCRIPTION

ASTM B677 904L Stainless Steel Seamless Pipes Dimention
O.D : 1/8" NB TO 32" NB, (10.29MM-812.80MM)
W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.
Product Name: ASTM B677 TP 904L Stainless Steel Seamless Pipe
Annealed and Picked
100% Pmi Tested
En10204.3.1b Mill Test Certificate Provided
Third Party Inspection Accepted

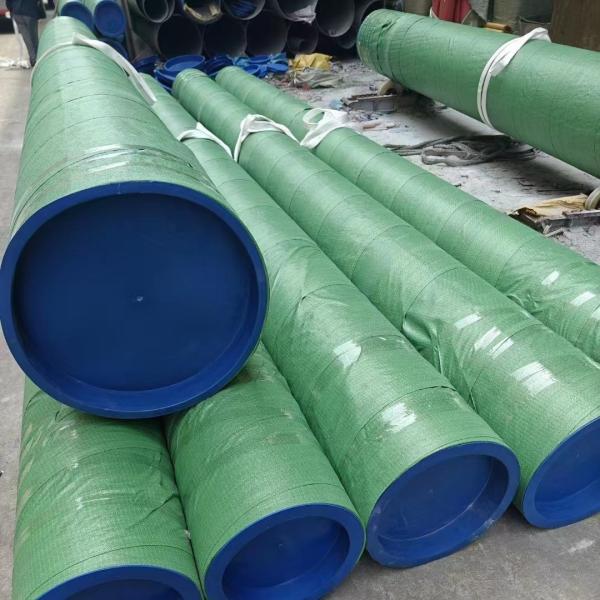

ASTM B677 904L Stainless steel seamless pipes Packing.
With plastic caps to both ends, Wrapped with Poly bags,pack into bundles. Or pack into plywood boxes as required.

904L/ N08904 Seamless Pipe Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	Cu
904L	min.max.	-0.02	-2	-1	-0.045	-0.035	1923	45	2328	12

904L/ N08904 Seamless Pipe Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B)	Brinell (HB)
904L	490	220	36	70-90 typical	150

The suitable alternatives to 904L stainless steels are tabulated below:

Grade	Reasons for choosing grade 904L
316L	A lower cost alternative, but with much lower corrosion resistance.
6Mo	A higher resistance to pitting and crevice corrosion is needed.
2205	A very similar corrosion resistance, with the 2205 having higher mechanical strength, and at a lower cost to 904L. (2205 not suitable for temperatures above 300°C.)
Super duplex	Higher corrosion resistance is needed, together with a higher strength than 904L

Applications of 904L Stainless Steel Pipe

Some of the major applications of grade 904L stainless steels include:

Wiring in electrostatic precipitators
Oil refinery components
Seawater cooling devices
Gas scrubbing plants
Pulp and paper processing industries
Acetic, phosphoric and sulphuric acid processing plants
